Who we are?
We're a group of passionate specialists
We design our own electronics and hardware, which differentiates us from most UAV’s manufacturers on the market, who rely on the integration of off-the-shelf solutions.
“People who are really serious about software should make their own hardware.“
Alan Kay

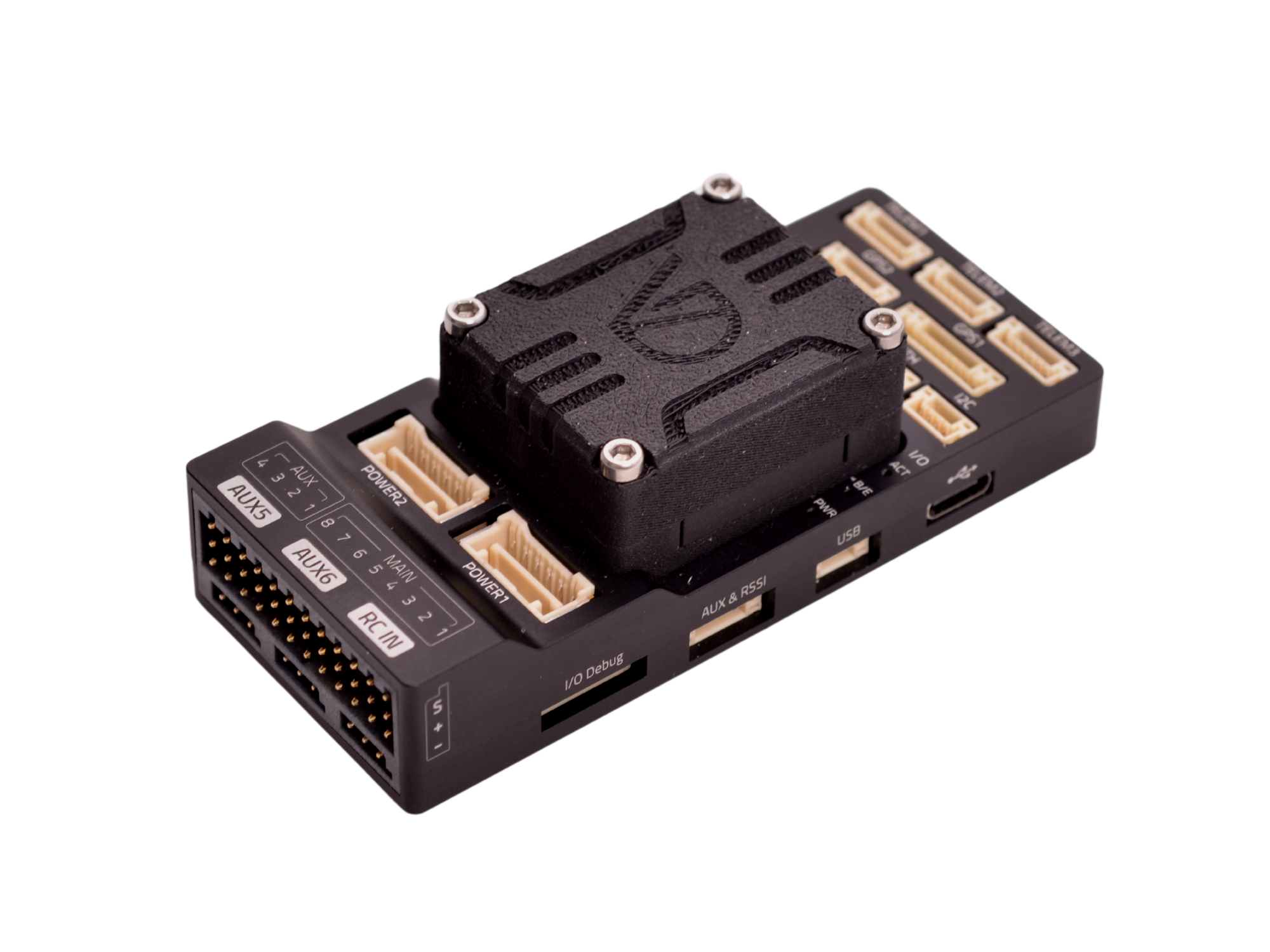

Integrated Flight Controller Flight Controller
- MCU Board: The brains behind autopilot functions, equipped with all fundamental sensors including barometer, IMU, and a differential pressure sensor (Pitot tube). Featuring 4GB eMMC memory, OSD, and RS422 and CAN connectivity. Also integrates an ESP32 module, enabling wireless communication at 2.4GHz or functioning as a DRONE ID identifier.
- SENSORS Board: Isolated from mechanical vibrations, it hosts a dual IMU setup and barometer, ensuring precision in data collection. Additionally, it incorporates active heating and temperature control mechanisms.
- POWER Board: Ensuring stable voltages (5V and 3V3) for all peripherals, this board includes two dedicated converters controllable via software. One exclusively powers servos, while the other drives cameras, with independent voltage control ranging from 5V to 12V.
View brochure
Download datasheet
MCU BOARD
- MCU: STM32H743ZI
- SENSORS: ICM-42688-P (IMU), ICP-20100 (BARO), 4525DO (PRESSURE)
- OSD: MAX7456
- MEMORY: 4GB eMMC
- UART+I2C (GPS), 2xUART, 2xCAN, RS422, I2C, ADC, RSSI, RC IN, DEBUG port (can be used as GPS2)
- 10xPWM
- ESP32-C3 FOR 2.4GHz COMMUNICATION (CAN BE USED AS DRONE ID IDENTIFIER)
SENSORS BOARD
- IMU1: ICM-42688-P
- IMU2: ICM-42670-P
- BARO: ICP-20100
- HEATER: 4×0.25W (1W)
- LOCAL LOW NOISE 3V3 LDO
POWER BOARD
- 4-12S LiPo INPUT
- VOLTAGE AND CURRENT MEASURMENT (UP TO 140A) – VIA I2C
- 5V/3A (PEAK 4A)
- 3V/0.3A (PEAK 0.4A)
- 5-12V/6A (PEAK 8A) FOR SERVOS – CONTROL VIA I2C
- 5-12V/6A (PEAK 8A) FOR CAMERA – CONTROL VIA I2C
Our other projects Other Projects
MAINBOARD
Drone mainboard integrating electronics and artificial intelligence capabilities in edge computing aspect.
- SUPERB INTER-COMPONENT COMMUNICATION
- BETTER VIBRATION HANDLING
- EASY INTEGRATION
- REDUCED WIRING
View brochure

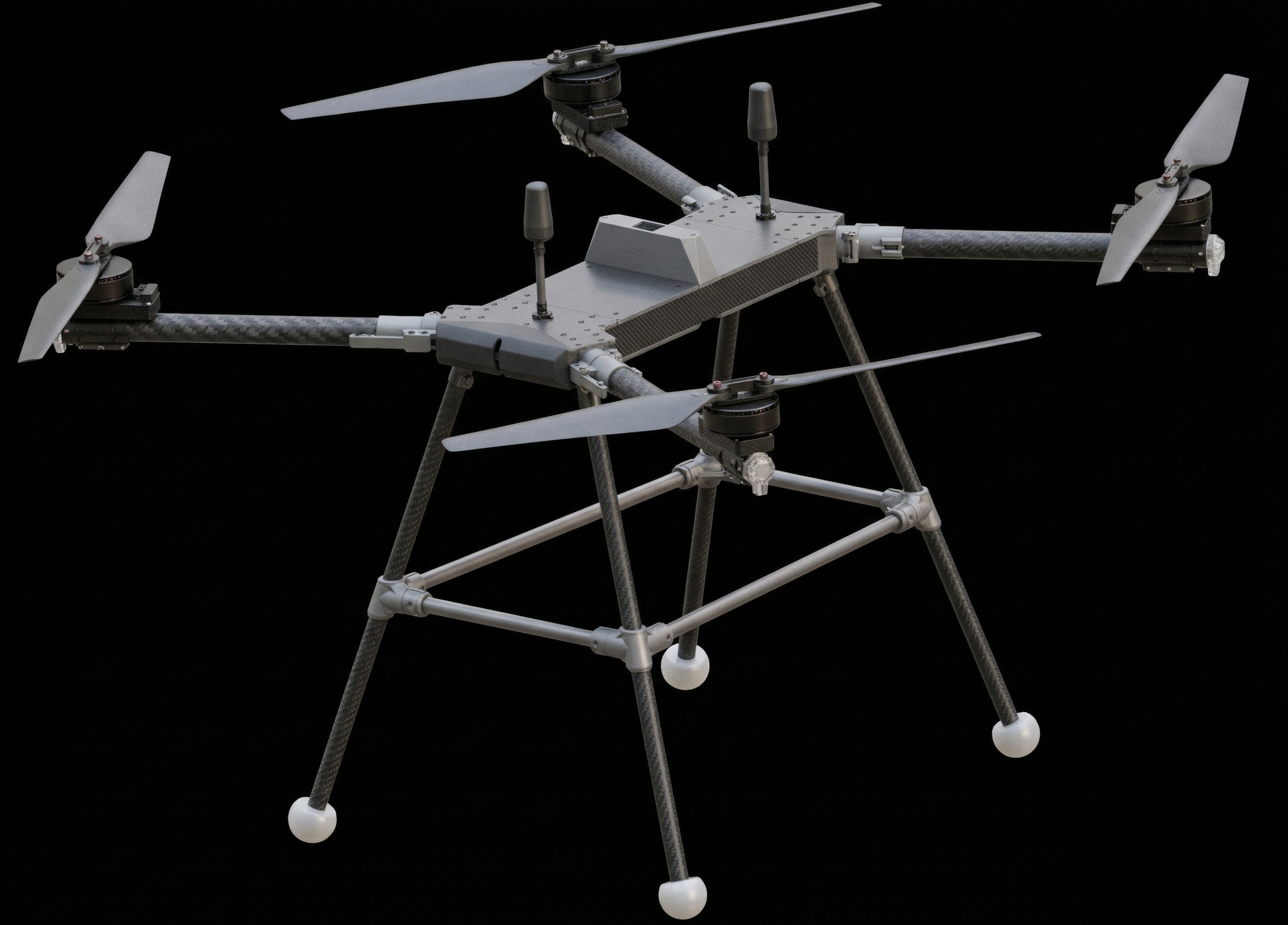

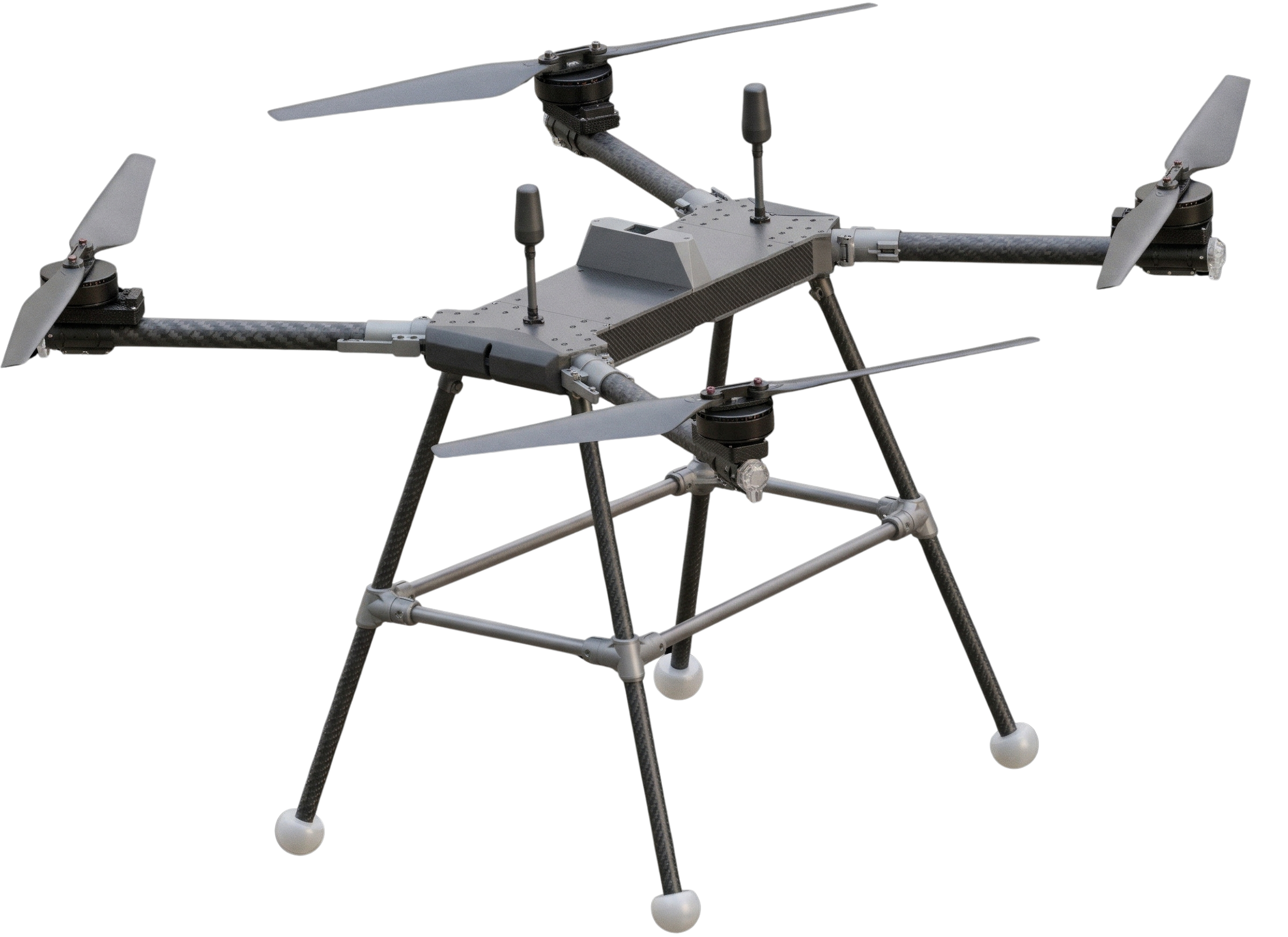

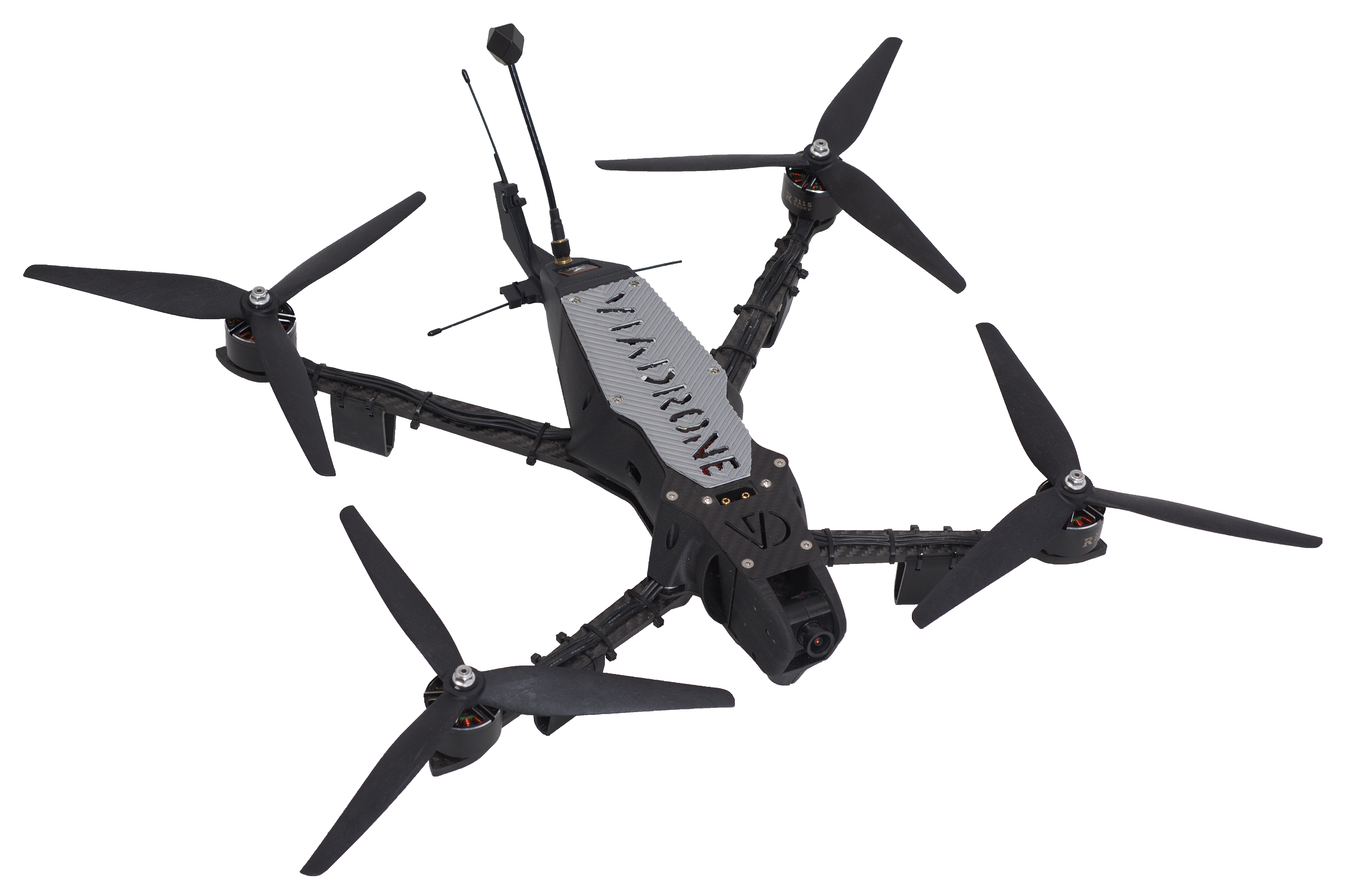

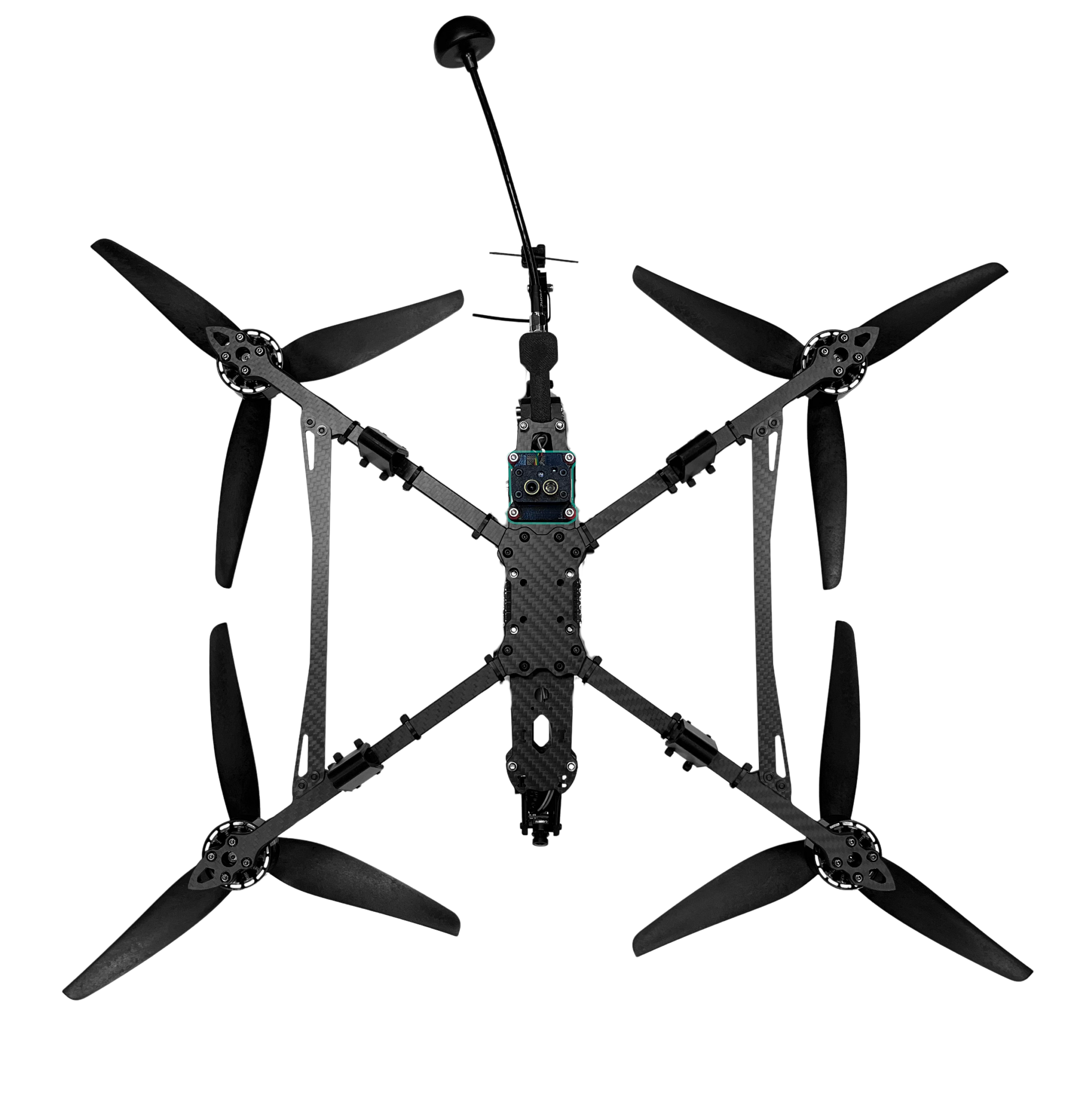

DRONE PLATFORM
Such a platform has advanced embedded electronics, including a flight computer and an AI computer for image/data processing. The platform has cameras used to collect images from the environment. With the embedded computer, the drone can process images in real time, analyze them in real time and make decisions based on the collected data.
Thanks to these advanced electronics and onboard computer, the drone is able to perform autonomous missions without constant supervision from an operator or ground station. It can make decisions on its own during flight, allowing it the autonomy to perform tasks according to programmed instructions or conditions detected on the ground.
View brochure
Our services Services
CUSTOM ELECTRONICS
Our team specializes in providing custom electronics design services tailored specifically for drone platforms. We excel in crafting bespoke electronic solutions optimized for the unique needs and functionalities of drone technology. Whether it involves enhancing onboard computing, integrating sensors, or developing specialized systems, we deliver comprehensive and innovative electronic designs to elevate drone performance and capabilities.
CUSTOM MECHANICAL DESIGN
Our team specializes in providing comprehensive design services dedicated to crafting structures and components specifically tailored for drone platforms. We excel in engineering and optimizing various elements essential for drones, including frames, specialized parts, and aerodynamic components. Our focus lies in delivering innovative and customized solutions that elevate drone performance while ensuring durability and reliability.
SOFTWARE DEVELOPMENT
We specialize in providing extensive programming services that cover AI and embedded technologies specifically designed for drone applications. We're adept at developing bespoke software solutions, empowering our clients to seamlessly integrate intelligent technologies into their workflows and operations. Whether it's fine-tuning AI algorithms or crafting embedded systems, our focus remains on delivering highly optimized software solutions tailored for drone technology. We pride ourselves on complementing our product offerings with intelligent and innovative software solutions.
3D PRINT
Do you possess a distinct project in mind? Share it with us, and we'll bring your concept to life! Have an object you wish to replicate? Let us create a design and generate a 3D model ready for printing. If you're still undecided on a project, worry not! We'll guide you through the process, from conceptualization to printing, crafting any 3D element you desire.
